Compact Series Mills

Prodotto

Construction specifications

Suitable for material with a humidity of less than 1% and a material hardness of max. 3,5 at the Mohs scale.

Suitable for virtually all fields where fine grinding is required: minerals, chemical, pharmaceutical, food etc.

Material finesse d97 20 – 200 micron.

Special application for toxic waste smoke treatment.









Prodotto

Operational principle

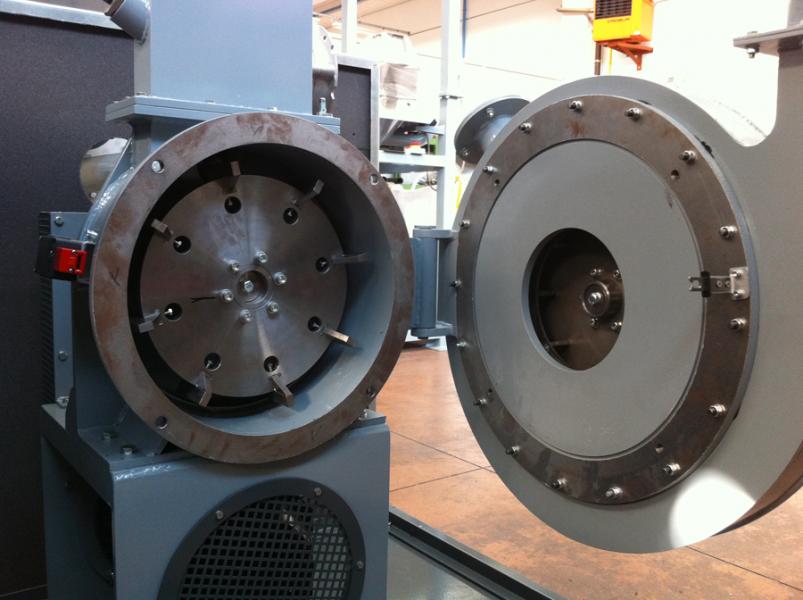

The grinding process is achieved by the impact of the material particles against the grinding track.

Working principle : A 360°rotating disc, utilizing the cylindrical grinding track of the grinding chamber, causes thematerial grinding and classifying process.

The material enters the single grinding chamber from the top, due to this design the material flows through the grinding and classifier wheel.









Operational advantages

  • Compact design, limited space requirement, easy installation
  • Minimum maintenance
  • Reduced energy consumption due to the electronic operation control
  • Fully automatic operation process



Generics machine data

Size Total Installed Power Total Absorbed Power Capacity per hour Pollutant

Finesess*

Air Capacity Pressure Noisiness
kW kW Range - Kg/h mc/h mmH2O dBA
280 6,5 5,8 10 ÷ 150 HCl d.90 < 30μm
d.50 < 15μm
475,0 350,0 < 75
SOx d.90 < 20μm
d.50 < 5μm
400 13,4 12,0 40 ÷ 300 HCl d.90 < 30μm
d.50 < 15μm
1.500,0 500,0 < 75
SOx d.90 < 20μm
d.50 < 5μm
600 34,1 30,6 100 ÷ 450 HCl d.90 < 30μm
d.50 < 15μm
2.300,0 700,0 < 75
SOx d.90 < 20μm
d.50 < 5μm

* Data refer the use of Sodium bicarbonate, technical grade

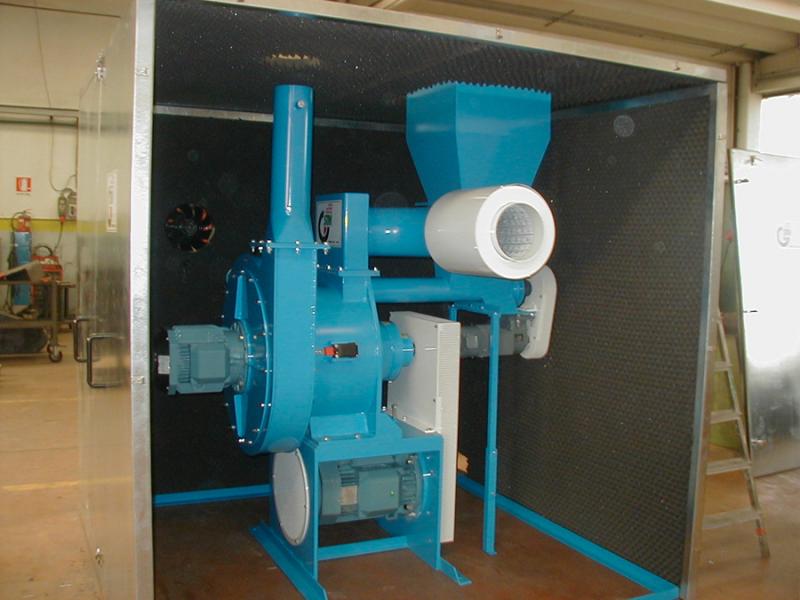

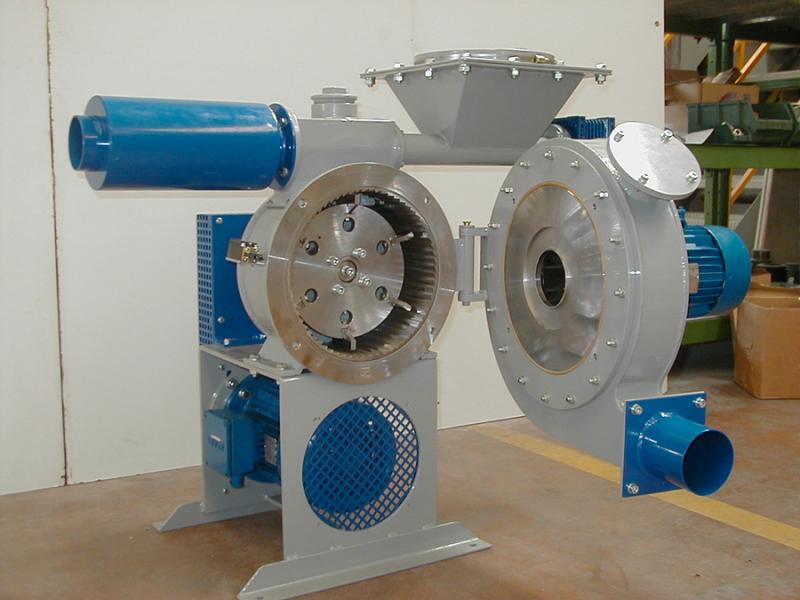

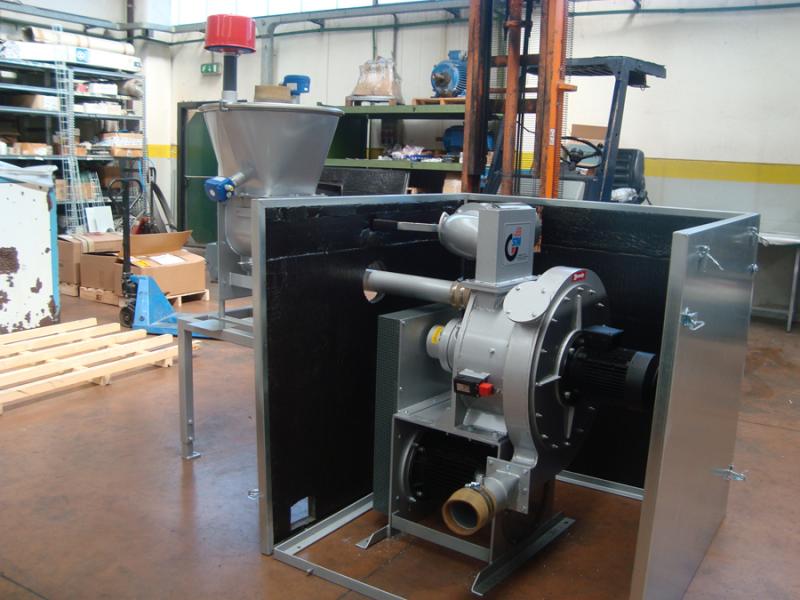

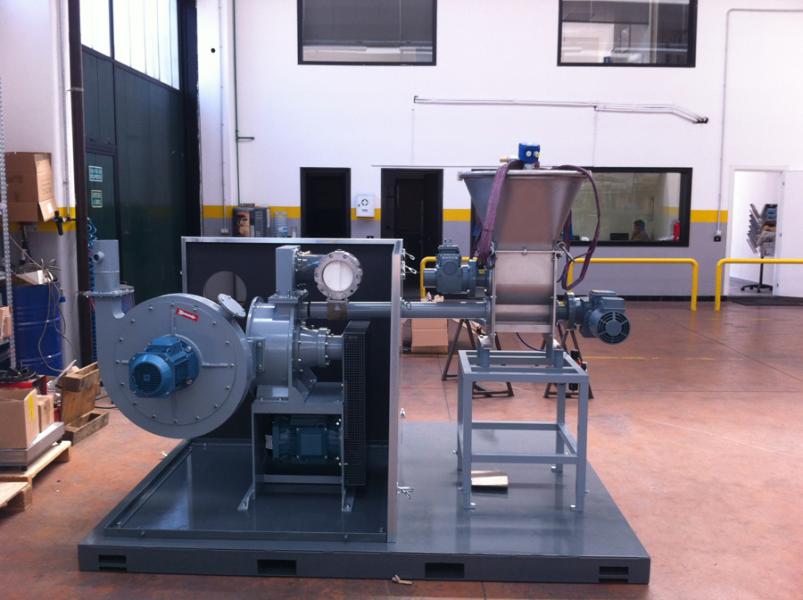

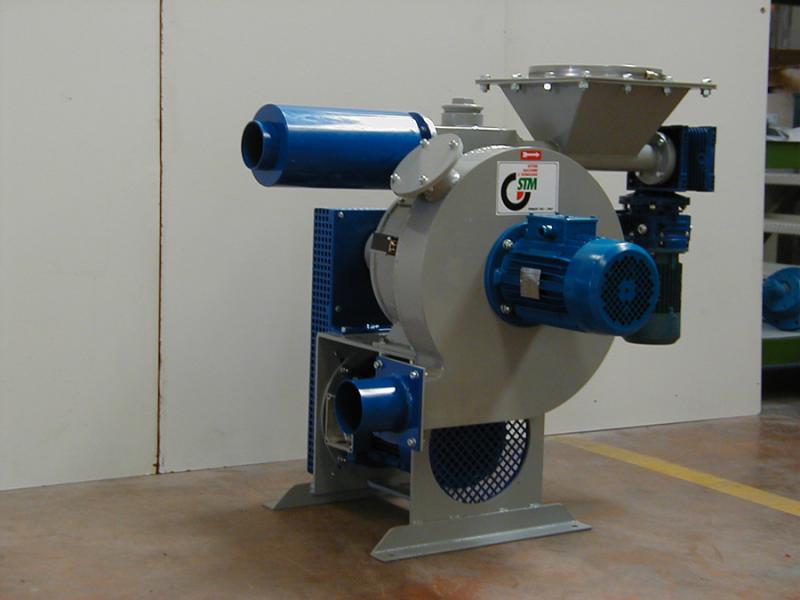

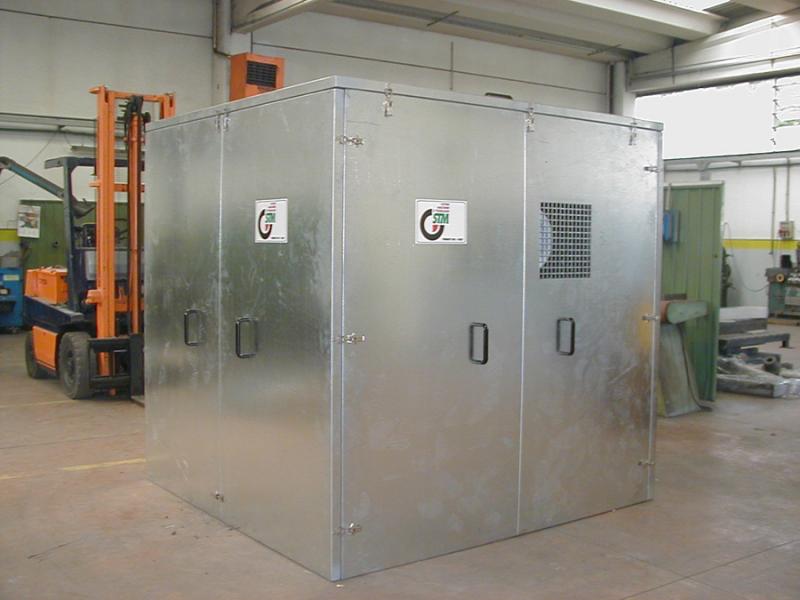

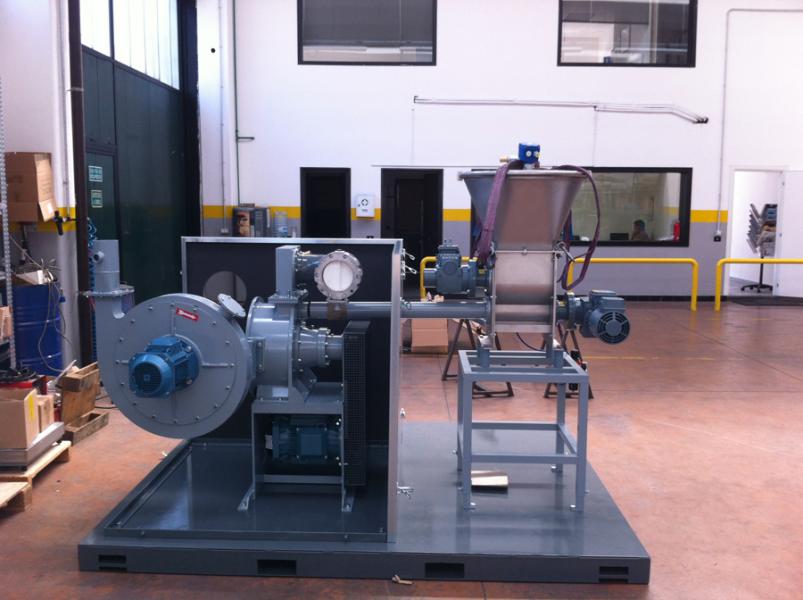

Gallery
